ResMed

AirCurve 10 ASV with HumidAir Card to Cloud

AirCurve 10 ASV with HumidAir Card to Cloud

SKU:37384

Regular price $2,645.00 USD
Regular price Sale price $2,645.00 USD
Sale Sold out
Shipping calculated at checkout.

This item requires a specific type of prescription. Please contact us about your prescription to ensure you need this item!

View full details

AirCurve ASV Bi-Level by ResMed

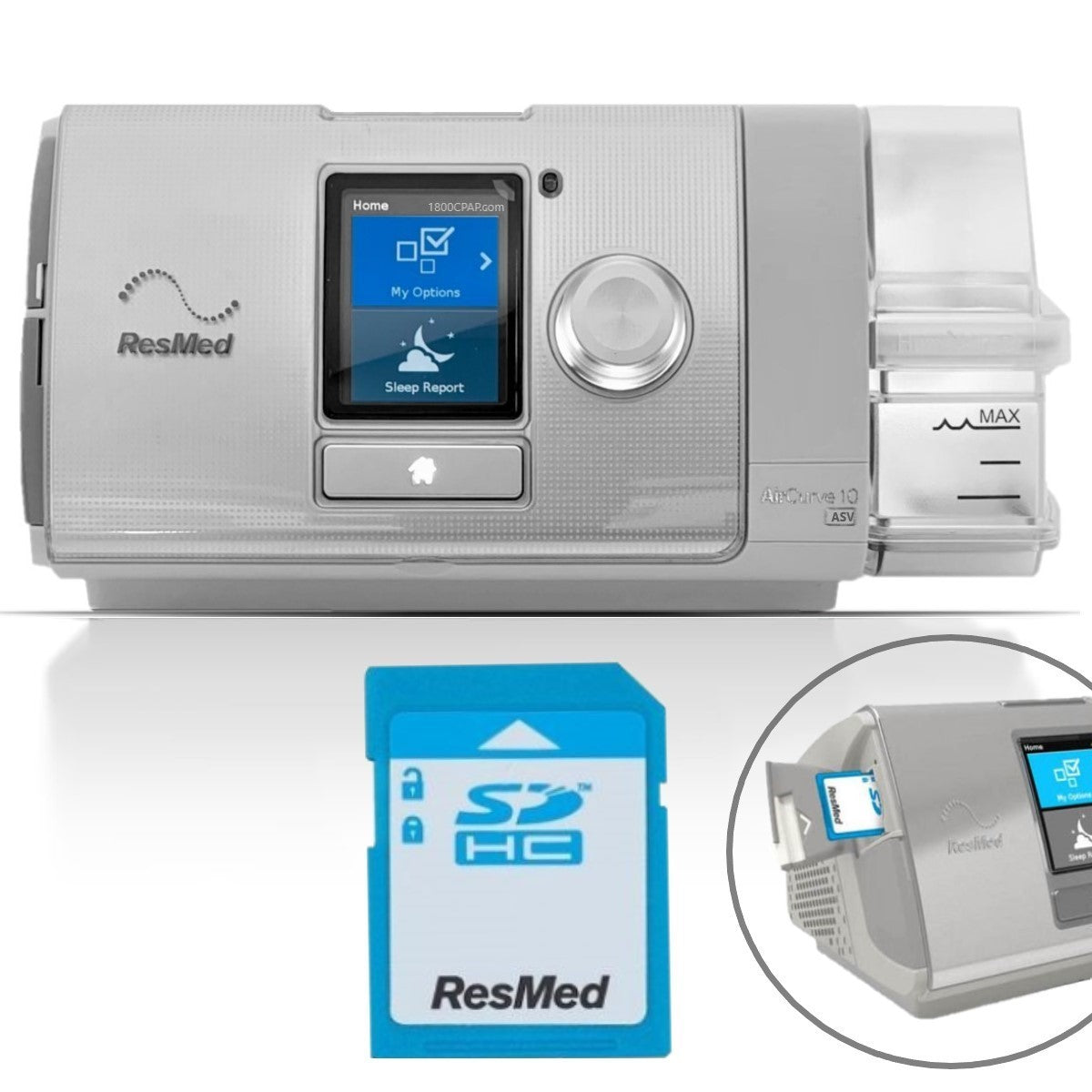

This is the new Card-To-Cloud model that features an SD Card for transferring data from the machine to AirView cloud. This model does not include a cellular modem.

Copy of RX Required if Applicable to U.S Residents

Product Description

The ResMed AirCurve 10 ASV Bilevel is a unique therapy device that offers personalized therapy for uncommon breathing disorders such as Cheyne-Stokes respiration (CSR), central sleep apnea (CSA) and associated obstructive events. It features the most clinically-studied and proven ASV algorithm, the AirCurve 10 ASV is the only adaptive servo-vent that targets the patients own recent minute ventilation .

ASV is a new form of positive airway pressure unit that continuously monitors the patients breathing pattern in exquisite detail. Whenever ASV detects significant reductions or pauses in breathing, it intervenes with just enough support to maintain the patients breathing at 90% of what had been normal for that individual just prior to the decrease in breathing. When the patients breathing problem ends, the machine reduces pressure gently.

When the patients breathing is stable, ASV provides just enough pressure support to help keep the airway open, thereby providing an approximate 50% reduction in the work of breathing. The ASV Technology continuously adjusts itself to meet the patients needs in a way that will feel normal for that patient at that point in time, most like the patient's natural breathing, which makes therapy much more comfortable .


What are ASV Devices Meant To Treat?

  • Complex sleep apnea syndrome and central sleep apnea.
  • Normalizes breathing, completely suppressing CSA and/or Cheyne-Stokes respiration (CSR)
  • Improves sleep, (the amount of time the patient spends in slow-wave and REM sleep increases).

Adaptive-Servo Ventilation Algorithm:

  • Adapts to the patients ventilatory needs on a breath-by-breath basis
  • Automatically calculates a target ventilation (90% of the patient's recent average ventilation)
  • Adjusts the pressure support to achieve it
  • ASV algorithm constantly learns, responds, predicts and synchronizes with the patients respiratory pattern to help rapidly stabilize respiration.
  • The pressure support varies to respond to the patient's need.
  • Mandatory breaths are delivered at the patients recent spontaneous breath rate

Special Features

  • Easy-Breathe Waveform: Easy-Breathe pressure waveform mimics the wave shape of normal breathing and replicates it for your breathing comfort.
  • Leak Management: Continuous leak management enables reliable delivery of therapy pressure while maintaining patient-device synchrony.
  • Climate Control: Climate Control comprises the HumidAir humidifier and the ClimateLineAir heated air tube and is designed to deliver constant, comfortable temperature and humidity levels during therapy and aims to minimize the common side effects of therapy to increase compliance.
  • ASV Auto Mode: In ASV Auto mode, this Bi-level machine not only responds within the breath, adjusting Pressure Support to stabilize respiration, it also automatically adjusts the expiratory pressure in order to provide the minimum pressure required to maintain upper airway patency.
  • The ASV Auto Mode analyzes the state of the patients upper airway on a breath-by-breath basis and delivers expiratory pressure within the allowed range.

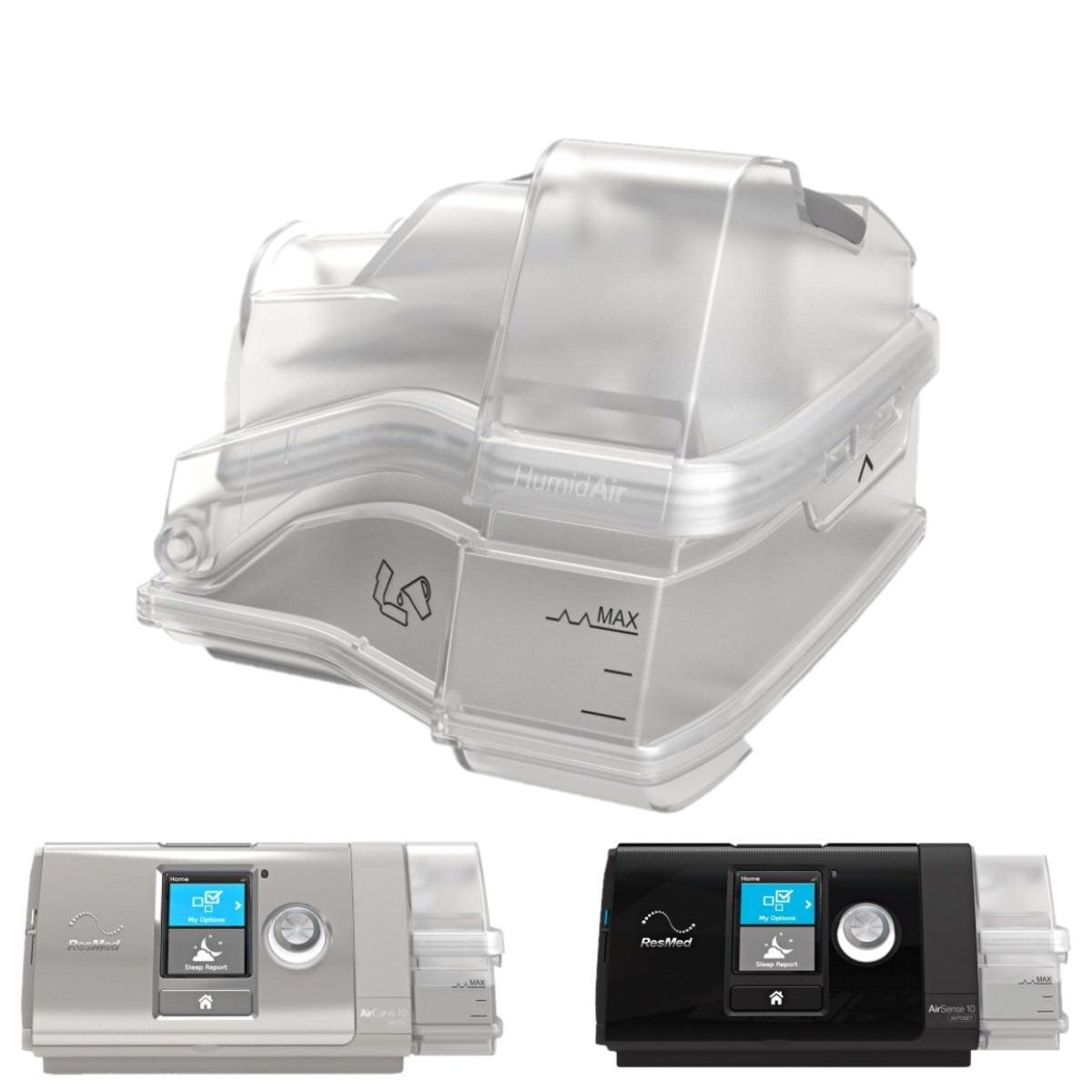

  • HumidAir Integrated Heated Humidifier is built in to the CPAP device. You can use the ClimateLine Air heated hose tube or a standard SlimLine lightweight hose tube.
  • Bilevel Positive Airway Pressure provides two levels of pressure: Inspiratory Positive Airway Pressure (IPAP) and a lower Expiratory Positive Airway Pressure (EPAP) for easier exhalation.

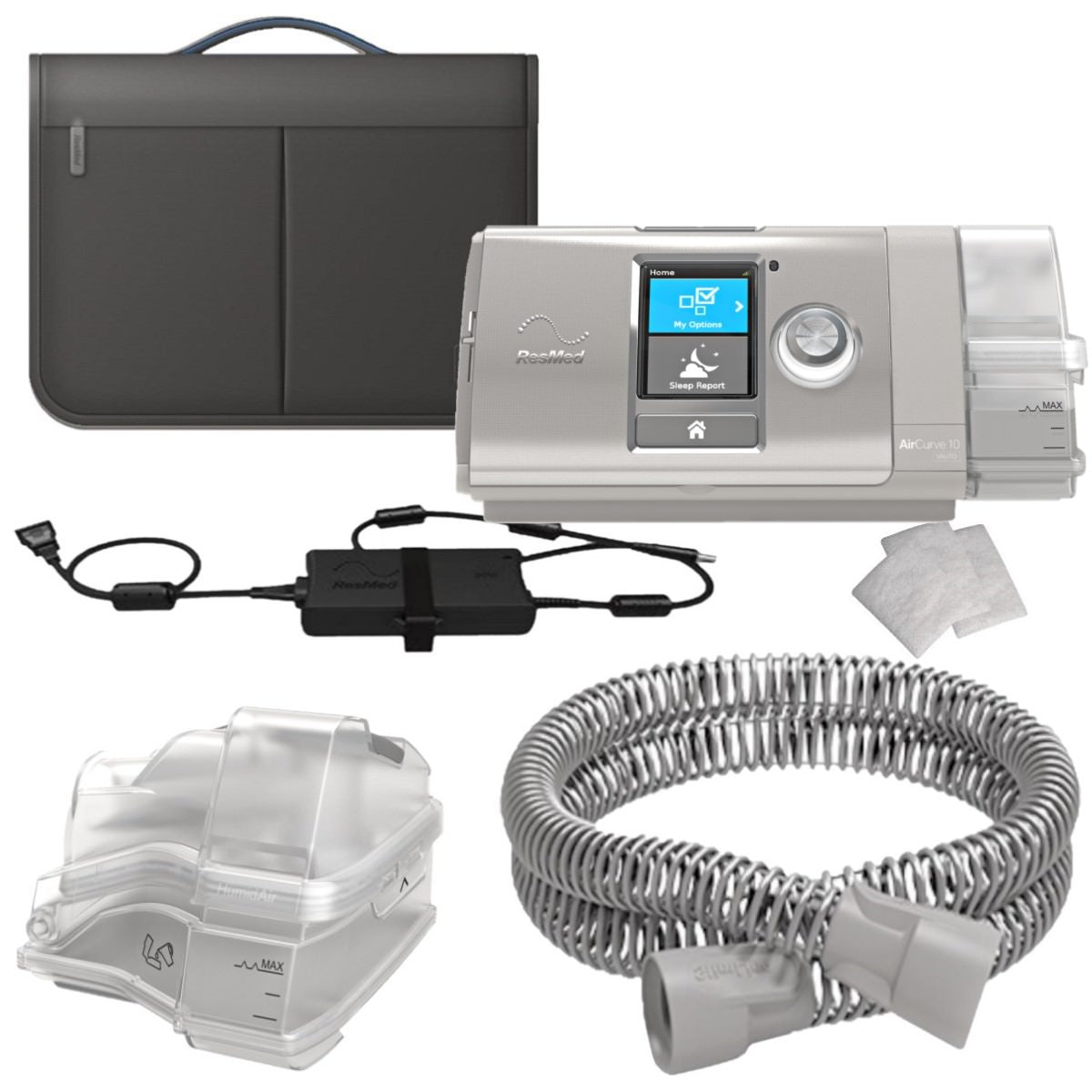

Include with your Purchase

  • (1) AirCurve 10 ASV Bi-Level Machine with Integrated Humidifier
  • (1) New humidifier water chamber tub
  • (1) SlimLine tubing
  • (1) Power Supply
  • (1) SD Card
  • (1) Travel Bag
  • (Mask Not Included: Recommended Full Face Style)

Optional Accessories:

  • ClimateLine Air Heated CPAP Hose (Optional add-on at checkout

Recommended Replacement Schedule:

  • Hose: Every 1-3 Months (or as needed)
  • Filter(s): Every 1-3 Months (or as needed if noticeable build up)
  • Water Chamber: Every 6-12 Months (or as needed)
  • Mask: As Needed
  • Actual Weight: 44 oz.
  • Altitude Compensation: Yes
  • Associated Part Numbers: 37384
  • Compliance Meter: Yes
  • Condition: New
  • Dimensions: 4.57" x 10.04" x 5.91"
  • Filters: Standard Pollen or Hypo-Allergenic
  • Humidifier: Integrated, Included
  • International Shipping: Yes
  • Mode of Operation: Auto Servo Ventilator (ASV) Mode
  • Pressure Range: 4 to 25 cm H2O
  • Ramp Time: 0-45 minutes
  • RX Required?: Yes, When Applicable
  • Shipping Weight: 7lbs
  • Special User Features: Card to Cloud. Optional ClimateLine Air Heated Tubing
  • Starting Ramp Pressure: 4cm h2o
  • Travel Sized: Yes
  • US Shipping Cost: Free Standard Ground
  • Warranty: 2 Year

Q: How do I Adjust the AirSense/AirCurve 10 Comfort Settings?

A: To access and personalize your settings on the AirSense/AirCurve 10 machine, rotate the dial to highlight "My Options." Once the desired option is highlighted, press the dial to view and adjust your current settings.

Q: How Do I Adjust the Humidifier Settings?

A: In My Options, turn the dial to highlight Humidity Level and then press the dial.

Turn the dial to adjust the humidity level and press the dial to save the change. If you’re getting a dry nose or mouth, turn up the humidity. If you’re getting any moisture in your mask, turn down the humidity.

The humidifier enhances the air's moisture content, ensuring a more comfortable therapeutic experience. Equipped with the Climate Control enhanced Auto setting, this device automatically adjusts temperature and humidity to optimal levels for maximum comfort. Simply plug it in, press Start and enjoy a relaxing treatment.

You can also manually set the Humidity Level to Off or between 1 and 8, where 1 is the lowest humidity setting and 8 is the highest humidity setting. (Note: if you’re using a ClimateLineAir™ heated tube, you will need to turn the Climate Control setting on your device from “Auto” to “Manual” to access the humidity level setting.)

Q: How Do I Adjust Ramp Time?

A: In My Options, turn the dial to highlight Ramp Time and then press the dial.

Turn the dial to adjust the ramp time to your preferred setting and press the dial to save the change. Ramp Time is designed to make the beginning of therapy more comfortable and is the period during which the airflow pressure increases from a low start pressure to your prescribed treatment pressure. You can set your Ramp Time to Off, from 5 to 45 minutes.

Q: How Often Should I Replace AirSense/AirCurve 10 Machine Parts?

A: Regularly maintain your CPAP supplies, as dirt and wear can affect them. Check the water tub, air tubing, and filter frequently for damage.

Water Tank: Replace if it is leaking or has become cracked, cloudy or pitted. Replace if the seal is cracked or torn. Remove any white powder deposits using a solution of one part household vinegar to 10 parts water.

Hose Tubing: Replace if there are any holes, tears or cracks.

Machine Filter: Check the air filter and replace it at least every six months. Replace it more often if there are any holes or blockages by dirt or dust.
